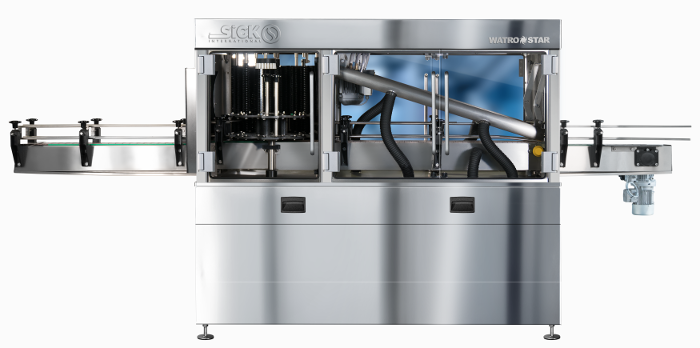

WATROSTAR - WASHING & DRYING
Automatic washing and drying machine for the outside of wine bottles, from 1,500 up to 8,000 bottles / hour (depending on the machine). The whole machine is
made of high quality wear resistant materials. Apart from its excellent design, Watrostar provides perfect washing and drying results.

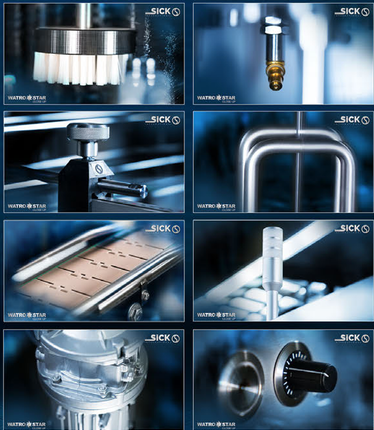

ADVANTAGES
- Basic frame and cover made completely of stainless steel
- Integrated control panel
- Minimum water consumption thanks to optimized nozzles
- Quick and easy changeover of the bottle guiding parts
- It is possible to set the machine at washing only, drying only, or to equip it with a by-pass rail for the free passage through the machine
- All cylindrical brushes equipped with bottom brushes
- Blower speed continuously adjustable.
- Water supply stops automatically when the machine is switched off
- Additional water tap for the regulation of the water pressure
- Transparent polycarbonate covers in the washing and drying sector
CHARACTERISTICS
For characteristics of bigger equipment, please contact us.
| Technical data | Watrostar S | Watrostar M | Watrostar L | Watrostar XL |
|---|---|---|---|---|
| Output - Bottles/h | 1,400 | 2,800 | 4,500 | 6,000 |
| Bottle diameter - mm | 56 - 110 | 56 - 110 | 56 - 110 | 56 - 110 |
| Bottle height - mm | 200 - 380 | 200 - 380 | 200 - 380 | 200 - 380 |
| Water consump. - m3 / h | 0.15 | 0.15 | 0.35 | 0.45 |
| Net weight - kg | 570 | 700 | 1,200 | 1,350 |
| Comments | Ideal for small productions (0 to 1,400 btles per hour). Equipped with a bottle top blow-off device and an infeed and outfeed conveyor (incl.drive). Perfect for "stand-alone operation" but also for integration into a complete production line. | Designed for small and medium-sized bottling facilities. Capacity of 800 to 2,800 btles/hour. Sound insulation, PLC control, touch panel and interior lighting in the washing and drying zone. | Controllable capacity of 800 to 4,500 bottles. Sound insulation, PLC control and touch panel integrated into a swiwel arm, interior lighting in the washing and drying zone, bottle detection at the outlet for the backup detector. Fully automated self-cleaning system in the washing and drying zone. | All features of Watrostar L, plus optional water recycling, bottle detection at the intlet for the automatic activation and deactivation of the brushes. |
