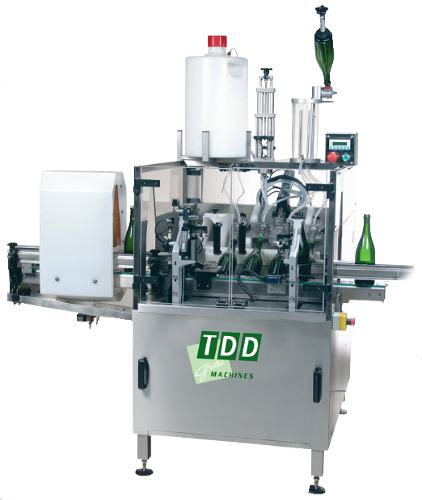

EDDA 5

Automatic disgorging and dosage unit for 1/2, 1/1, 2/1 and special shaped bottles
500 to 800 bottles / hour

Characteristics

• Supplied with one arm which disgorges one bottle
• A "thumb" avoids wine losses and control / monitor the start of the crown cap
• One emptying spout adjustable
• One dosage spout (from 0 to 6cl)
• One dose control supplied with automatic adjustment
• Two refilling / leveling spouts adjustable from 55 to 100 mm.
• One arm to put bottles on the conveyor

Technical specifications

• Output: 500 to 800 bottles / hour
• Air pressure: 6 bars
• Air consumption: 8 m3
• Voltage (triphase): 380 V
• Power: 0.90 kW
• Weight: 250 kg
