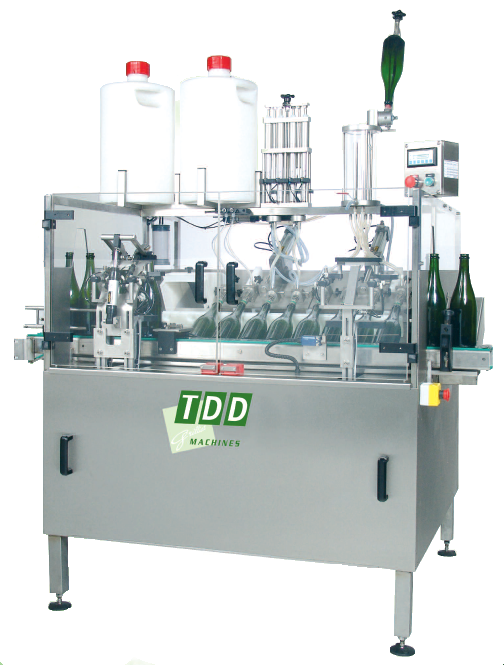

EDDA 10

Automatic disgorging and dosage unit for 1/2, 1/1, 2/1 and special shaped bottles
800 to 1 200 bottles / hour

Characteristics

• Supplied with one arm which disgorges two bottles
• Two "thumbs" avoid wine losses and control / monitor the start of the crown cap
• Two emptying spouts adjustable
• Two dosage spouts (from 0 to 6cl)
• One dose control supplied with automatic adjustment
• Four refilling / leveling spouts adjustable from 55 to 100 mm.
• One arm to put bottles on the conveyor

Technical specifications

• Output: 800 to 1 200 bottles / hour
• Air pressure: 6 bars
• Air consumption: 10 m3
• Voltage (triphase): 380 V
• Power: 0.30 kW
• Weight: 300 kg
