ENOLOGICAL ANALYSER - QUICK
Completely automatic oenological analyzer be used together with the Gibertini electronic distilling unit DEE and the steam generator VADE
(according to EEC Regulation N. 2676/90) to determine:
On the distillate:
- the gross and correct volatile acidity
- the total sulphur dioxide content
On the wine:
- the total acidity
- the free sulphur dioxide on white, rosé and red wines: these are measured after treatment with SO2 BUBBLE accessory
Advantages
- completely automatic system
- System operates independently of the operator’s subjectivity
- Time saving compared to manual systems
Technical characteristics
Repeatability
- for the volatile acidity: 0.04 g/l
- for the total sulphur dioxide: 6 mg/l
- for the total acidity: 0.07 g/l
- for the free sulphur dioxide: 2 mg/l
Operation
Automatic colorimetric titration: the instrument records the colour changes of the indicators defining the end-point of the titration.
Time of analysis
Distillation or bubble processes not included - indicative values depending on the sample
- Correct volatile acidity: 5-6 minutes
- Gross volatile acidity: 3-4 minutes
- Total sulphur dioxide: 4-5 minutes
- Total acidity and free sulphur dioxide: 2-3 minutes
Working capability
Indicated values have been evaluated as per maximum values established by the EEC legislation on wines.
- Volatile acidity (maximum limit for red wines 1.20 g/l): about 60 analysis
- Total sulphur dioxide (maximum limit for white and rosé wines 210 mg/l): about 30 analysis

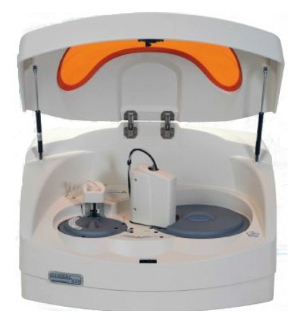

AUTOMATED MULTIPARAMETRIC ANALYZER FOR ENOLOGY - GLOBAL 240
GLOBAL 240 is a completely automatic analyzer that assures high productivity, up to 240 test/hour, at maximum advantage.
Advantages
- 240 tests / hour
- Multi Wavelength reading
- Stat function
- 24 hours non stop of colling reagents
- External computer
- Remote control to diagnose eventually malfunction - Analyser can be controlled in remote by internet connection
- Run with: K+, Na+, CI-
- Optional: barcore reader
Parameters
- ACETIC ACID
- ACETALDEHYDE
- AMMONIACAL NITROGEN
- ANTHOCYANIN
- ALPHA AMINO NITROGEN
- CALCIUM
- CATECHINS
- CHLORIDES
- CITRIC ACID
- COLOUR TEST
- COPPER
- D-GLUCONIC ACID
- GLUCOSE / FRUCTOSE
- GLYCEROL
- IRON
- L-LACTIC ACID
- D-LACTIC ACID
- MAGNESIUM
- L-MALIC ACID
- pH
- PYRUVIC ACID
- POTASSIUM
- TARTARIC ACID
- TOTAL POLYPHENOLS
- TOTAL ACIDITY
- SO2 FREE
- SO2 TOTAL
- SACCHAROSE
- SODIUM
- ZINC
Characteristics
- Sample Tray: 40 small sample cups and 10 positions for standard and controls
- Reagent Tray:
Up to 60 reagents
Reagents cooling system operating by Peltier device 24 hours a day even with analyser off
- Reading system:
- 50 lasting cuvettes with 0,6 cm of optical path (changeableone by oneone)
- Temperature of cuvettes controlled and stabilized at 37°C 0,1°C
- Zero setting of each cuvette with water before use.
- Washing station with low consumption of distilled water.
- The longest reading time is 600 seconds
- First results after 2 minutes
- Sampling system:
- SIP&DIP sampling mode
- Sampling probe provided with sensor level for reagent and sample detection.
- Automatic check of on-board reagents volume
- Pre-heating system of refrigetrated reagents.
- Continuous washing and drying of sampling probe to minimize the carry over.
- Sensor for lack of water and full waste signaling.
- Separate biological waste
- Photometer:
- Halogen lamp 6V/20W - lifespan 2000 hours
- 9 interference filters: 340-380-405-450-505-546-570-620-700 nm
- Multi wavelenghts readings within 40 ms
- Transmission of light through optical fiber
- Software:
- Software for complete analyser control (installed on external PC) running under Windows OS.
- Display of linear and not linear calibration's curves (turbidimetric test)
- Graphic interface designed for touchscreen applications.
- Software predisposed for remote control by internet connection
