GYROPALETTE SINGLE CAGE

High quality Riddling - Suited for most situations - Production capacity: up to 35 000 bottles / year

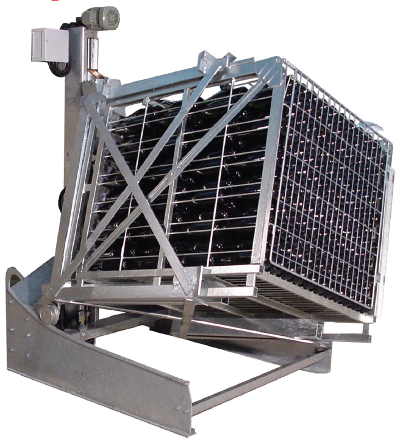

Robust: Welded chassis and cages in galvanized steel.

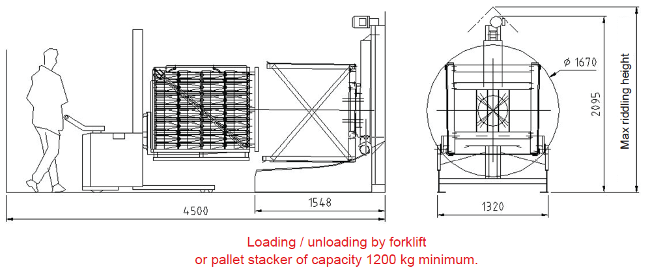

Compact: The frame is part of the rotation space of the box. The V-shape allows it to be installed in herringbone pattern in narrow cellars. By its tilting system, loading position, the cage is placed far back which facilitates handling.
Reliable: Through the galvanizing, quality of mechanical and electrical components, resistance to moisture in cellars is optimal and maintenance is low.
Easy to Use
Versatility: Riddling of metal boxes 504 taken by forks or TSR® containers handled by hooks.
Low Energy Consumption of motors: By the very good mechanical performance of rotation and tilt movements: two 0.37 kw motors

Rotate at 1/16th of a turn
0° initial inclination
Chassis stability, low amplitude of rotation and tilt ensuring quality and regularity of riddling
Suited riddling cycles in number of days
Controls: Creating riddling programmes from your PC with our Gyroprog® software and transfer to the logic controller via a USB key.
