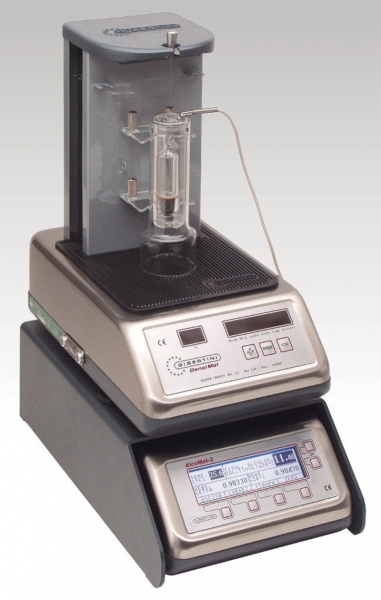

HYDROSTATIC BALANCES MOD. DENSIMAT - CE

Technical Characteristics

• Metrological approval
• Autocalibration with internal calibration mass
• Availability of grams readout
• Accuracy and readout: 5x10-5
• Range of the relative density measurements: 0.5 - 2.25
• Thermometric probe: Pt 100 1/3 DIN, accuracy ± 0.05°C, readability 0.1°C
• Data output: RS232
• Power supply unit: 220 VAC (-15% / +10%) 10 VA external (115 V on request)
• Dimensions (WxDxH): 210 x 355 x 360 mm
• Net weight: 7,5 kg

Reading Module model Alcomat 2

Fully automatic instrument to determine Alcoholic Strength by Volume (ASV) on the distillate in 5 seconds, to be used with DENSIMAT-CE. The readout of the Alcoholic Strength by Volume is shown on a large led screen simultaneously with the readout of temperature, density at 20°C and other parameters.

The reading module is provided with a shower proof keyboards whose functional keys allow:

• correction of the floater volume with H2O or certified standard solutions
• zeroset and calibration of the DensiMat
• date, hour, minute setting and other functions
• the printing of the reading value and other parameters
• choice of the language (Italian, German, English, French and Spanish)

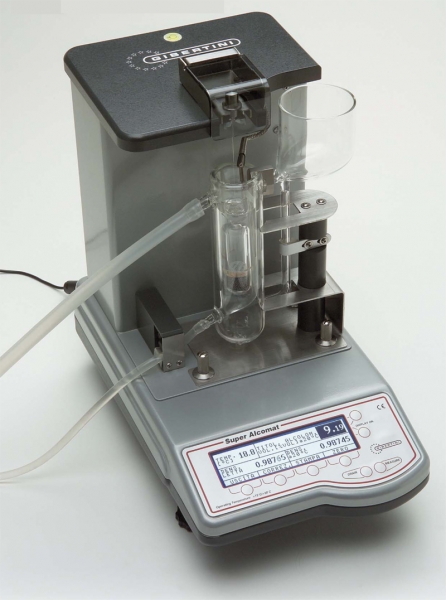

ELECTRONIC HYDROSTATIC BALANCE MOD. SUPER ALCOMAT

Fully automatic instrument to determine Alcoholic Strenght by Volume ASV, total dry extract and musts evaluation. The readout of the Alcoholic Strenght by Volume from 0,13 to 99,98% ASV is shown on a large LCD screen simultaneously with the readout of the temperature, density at 20°C and other parameters.

The reading module is provided with a shower proof keyboard whose functional keys allows:

• the correction of the floater volume with H2O or certified standard solution
• zeroset and calibration of the SuperAlcomat
• date, hour, minute setting and other parameters.
• the printing of the reading values an other parameters (printer not included)
• musts evalutation: Baumè, Babo, Brix and Oechsle degrees
• working temperature10-30° (optimum 15-23°C)
• languages: Italian, German, English, French and Spanish

Note: A Motorola micro-controller, specially designed for Gibertini, besides managing Super Alcomat most important functions, it is able to detect any internal problem inside the balance that could affect its accuracy, and suggest a service solution carried out by our qualified staff
