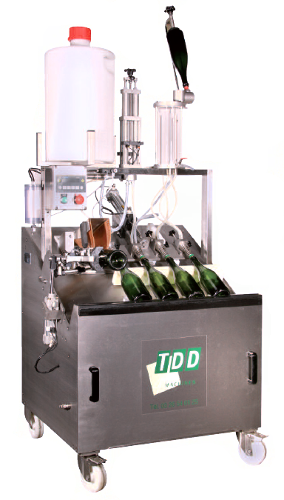

DDV

Semi-automatic disgorging and dosage unit for 1/2, 1/1, 2/1 and special shaped bottles
300 to 700 bottles / hour

Characteristics

• Supplied with an arm which offers both disgorging methods: disgorging "à la volée" (traditional method) and ice disgorging
• A "finger" avoids wine losses and control / monitor the start of the crown cap
• One emptying spout adjustable
• One dosage spout (from 0 to 6cl)
• One dose control supplied with automatic adjustment
• Two refilling / leveling spouts adjustable from 55 to 100 mm.

Technical specifications

• Output: 300 to 700 bottles / hour
• Air pressure: 6 bars
• Air consumption: 6 m3
• Voltage (uniphase): 220 V
• Power: 0.30 kW
• Weight: 150 kg
